Proel HPC210BK BOBINA 100mt matassa Cavo bilanciato professionale per microfono

PROEL HPC210BK

BOBINA da 100mt, matassa cavo bilanciato professionale per microfono, Nero

NUOVO - ORIGINALE - GARANZIA ITALIANA



Descrizione:

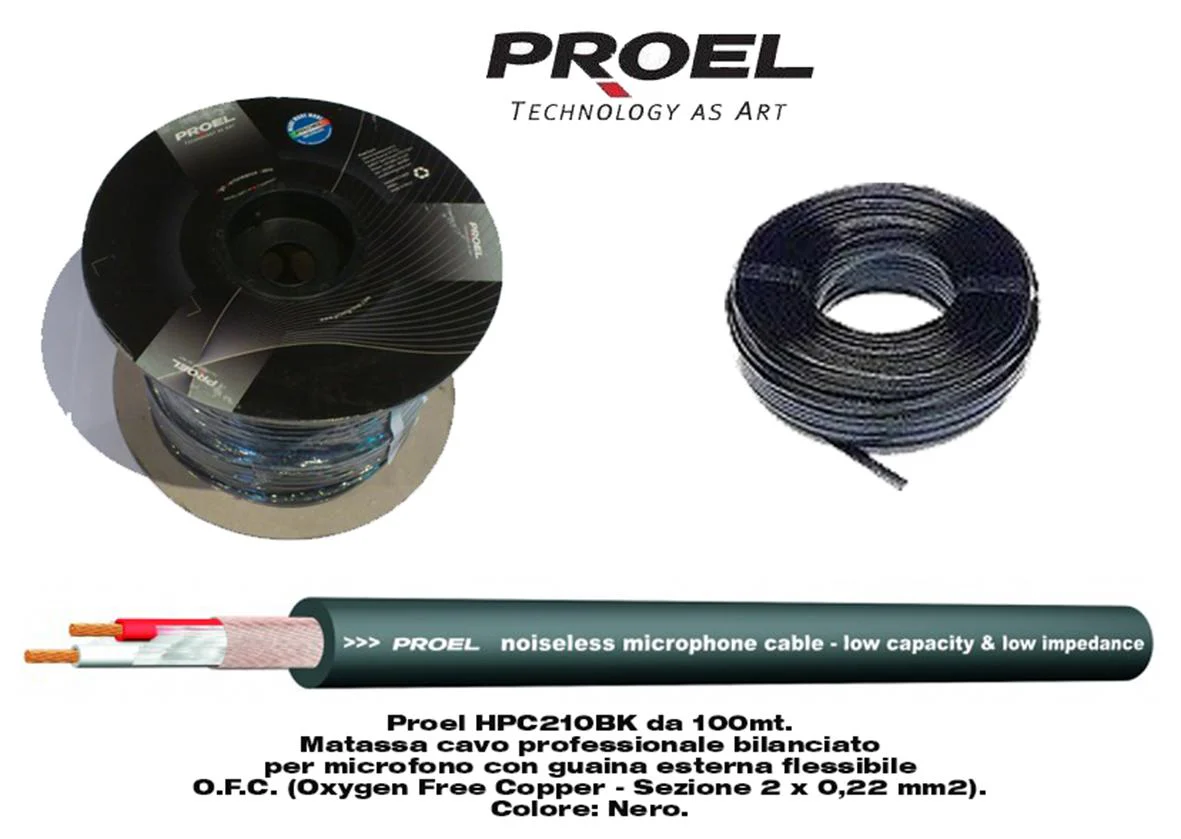

Proel HPC210BK da 100mt. Matassa cavo professionale bilanciato per microfono con guaina esterna flessibile - O.F.C. (Oxygen Free Copper - Sezione 2 x 0,22 mm2). Colore: Nero.



Specifiche Tecniche:

Application fields: Recording studios / Microphone connections

Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2)

Insulation: Super flexible PVC HT105 Ø 1.60 mm

Shield: Spiral copper 16x5x0.10 mm > 90%

Jacket: Flexible PVC 60 shore Ø 6.50 mm

Color: Black

Electrical resistance:

93 Ohm/Km (conductor) @ 20°C

20 Ohm/Km (shield) @ 20°C

Electrical capacitance:

46 pF/m (conductor/conductor) @ 1 KHz

90 pF/m (conductor/shield) @ 1 KHz

Velocity of propagation: 80 %

Operating temperature: -20°C / +70°C

Working tension:

< 50 V AC

< 75 V DC

Weight: 46 Kg/Km

Minumum bending radius: 20 x cable section radius

Packaging:

100 m carton reel

300 m wooden reel (HPC210BKR300)

500 m wooden reel (HPC210BKR500)
